Optex launches outdoor PIR range in EMEA

Posted On 04 Feb 2019
Comment: Off

Optex has launched a new series of outdoor PIRs in EMEA and in South and North America that offers 180° detection coverage and 12m/40ft radius to detect any intrusion around a residential or commercial building.

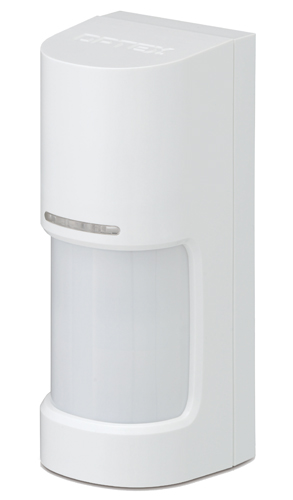

The WX Infinity series comprises two wired and two wireless models available either as the standard or anti-masking version with the 180° detection area coverage bringing a new feature that is ideal for protecting larger residential grounds.

“Outdoor warning technology can help prevent crimes by detecting and reporting intruders before they attempt to break into a building,” says Hiraku Shibuya, Section Chief, Sales and Marketing Department, Security Division at Optex Global Headquarters.

The WXI sensors can provide two, independent 90° 12m/40ft detection areas, one for the left side and one for the right. The detection distance ranges from 2.5m (8ft) to 12m (40ft), and the sensitivity and alarm output can be set up independently for these left and right areas. For instance, the left output can trigger for a simple awareness alarm while the right side output prompts CCTV camera system to set an event index.

A patent pending area-masking shutter allows a sliding mechanism to mask an area and makes the detection area narrower to avoid obstructions such as swaying vegetation. The set-up procedure has been made easier by including an automatic walk test mode to ensure a quicker installation.

The WXI motion sensors benefit from sensing analytics that filter out noises that are common in outdoor environments, and also distinguishes between humans and small- to medium-sized animals thanks to its Super Multidimensional Analysis (SMDA) logic. The sensors also include temperature compensation and double conductive shielding. The selectable pulse count also has the option to enhance the sensor sensitivity when needed.

All WX Infinity models feature a tamper-proof back panel to detect if anyone is attempting to move the sensor from the wall, and the anti-masking models (WXI-AM/ WXI-RAM) will alert when anyone tries to cover the lens to block its view.

“We are pleased to bring our first 180° outdoor PIR series to the market that complements our existing 90° and curtain sensor range,” adds Hiraku Shibuya.
